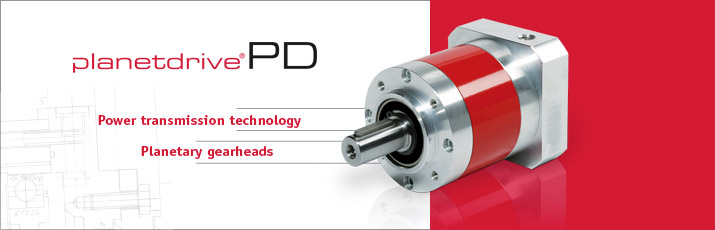

Planetary gearheads planetdrive® PD

planetdrive® PD is the well-established planetary gearhead from planetroll®. It is characterized by first-class reliability, a flexible mounting system, short delivery times and a very attractive price. The planetdrive® PD planetary gearheads are self-centring, equipped with an adapter flange system and axial length compensation, and are also maintenance-free thanks to lifetime lubrication.

The deciding advantages

  • High reliability, short delivery times and a flexible mounting system in well-established planetroll® quality for an attractive price.

The new technology

  • A self-centring planetary gearhead with flange adapter system and axial length compensation.

The properties

  • A planetary gearhead with a wide range of applications, meets ATEX and GMP standard requirements.
  • Developed for servo and IEC motor mounting.

Product overview

  • Sizes: PD040 to PD120
  • Torque range from 4 Nm to 110 Nm
  • Ratios from 3:1 to 100:1
  • Triple emergency stop torque
  • Service life 20,000 h
  • Low backlash
  • High efficiency
  • Adapted for intermittent and continuous operation
  • Axial length compensation
  • Configured for all mounting positions
  • Maintenance-free by lifetime lubrication
  • Simple motor mounting by clamping ring technology
  • Short delivery times for standard series R1

DOWNLOAD CATALOG PLANETDRIVE® PD



Download (PDF 0,6 MB)


Please note
:

PD155 1-, 2-, 3-stage: no longer available

PD190 1-, 2-, 3-stage: no longer available

3-stage gearheads of the sizes
PD040 / PD065 / PD085 / PD120
are basically no longer available.
